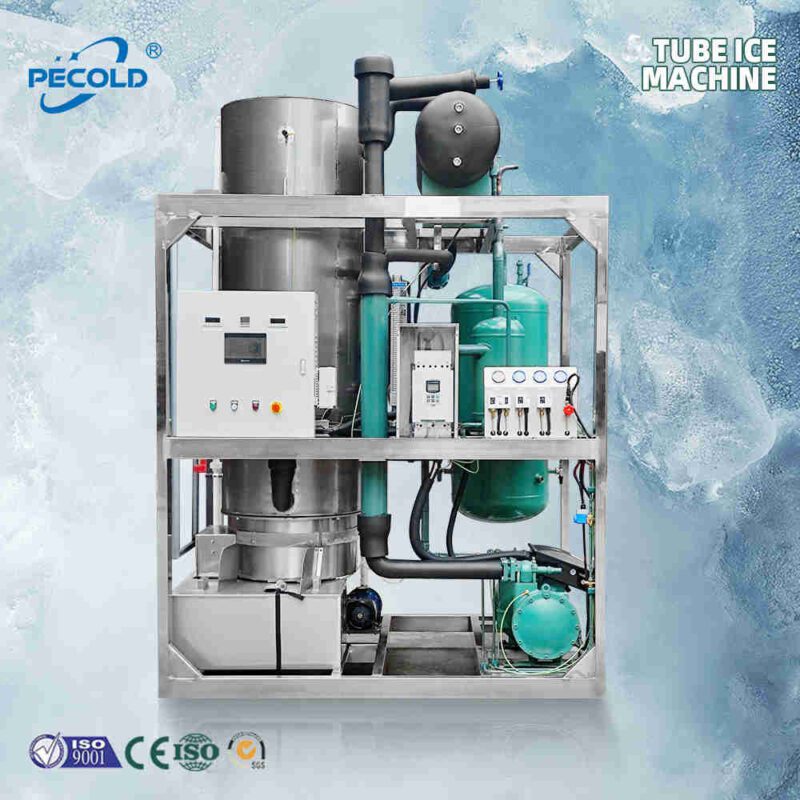

PE 5 Ton Water Cooling Per 24h Tube Ice Machine
- 5 ton tube ice machine production of ice transparent and beautiful. Long shelf life and good breathability. Widely used in food, commercial cold drinks, fishery and seafood, wholesale and retail, pharmaceutical laboratories, etc.
- Ice thickness and hollow part size can be adjusted according to customer requirements. The machine works automatically under the PLC program control system, with high productivity, low power consumption and less maintenance.
- The appearance of the ice tube is a hollow cylinder. The outer diameter of the ice tube is 20mm, 28mm, 34mm, 40mm; the length of the ice tube: 30mm, 35mm, 40mm, 45mm, 50mm. The inner diameter can be adjusted according to the ice making time, generally between 5mm-10mm.
- The host is made of SUS304 stainless steel. Food can be placed directly into the production room
Inquiry Now
Tube Ice Machine Parameters
- The main structure of the Pecold tube ice maker is made of stainless steel 304, and the hygienic level of the produced tube ice meets food grade standards
- Water cooling system is used, and our company can also design air cooling system if necessary
- The inner diameter can be adjusted according to the ice making time, generally between 5mm-10mm
5 Ton Tube Ice Machine Parameters
| Model | PET5T-R2W |
| Daily ice production (T/24h) | 5T |
| Refrigerating capacity | 31.8KW |
| Total power | 17.09KW |
| Compressor power | 13.6KW |
| Cooling way | Water cooling |
| Water inlet/drain pipe | 1/2″ |
| Unit dimension | 1800*1350*2450mm |
| Weight | 1600KG |
Tube Ice Machine Features
- Tube ice machines is a type of ice machine. It is named after the ice tubes it produces are in the shape of hollow tubes with irregular lengths.
- Tube ice comes in crystalline, powder-free tube form. Compared with flake ice, tube ice takes longer to melt and is more suitable for cooling in uninsulated environments.
- Tube ice is relatively strong and less likely to produce ice cubes, making it more suitable for long-distance transportation.
Applicable Scenarios
Widely used in food, commercial cold drinks, fishery and seafood, wholesale and retail, pharmaceutical laboratories, etc.Ice thickness and hollow part size can be adjusted according to customer requirements.
Commercial Cold Drinks
Fruit Ice
Wholesale And Retail
Aftersales Service Without Hassle
1 Year Warranty
Free repairment & spare components
are covered in warranty.
Easy Installment
Online video guidance or onsite support. Operation and maintenance training is also available if needed.
24-hour Technical Support
If you have any questions, please contact service directly and we will solve it for you within one day
